Perfect labeling is now easy.

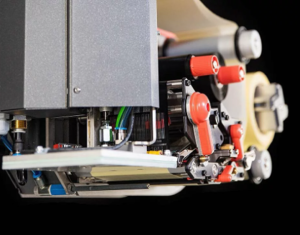

It is a low-cost automatic labeling system that provides easy integration. Handle a wide variety of marking jobs effortlessly with the Legi-Air 3050 label printer and applicator . The print module is compatible with both direct thermal and thermal transfer printing, making it a powerful system for industrial applications.
Legi-Air 3050 :
- Compact structure with many development options
- Lightweight and easily assembled for effortless integration
- Sensors monitor the entire labeling cycle
- Very easy to use
- Color touch screen for intuitive control
- Contactless label application
- Simple, logical system design
- Quick troubleshooting
- Extensive sales and technician network
- System distribution throughout Europe
- Uses print modules from leading global brands
- All parts and spare parts are standardized and mass produced
The Legi-Air 3050 provides an inexpensive entry into industrial labeling. The label printing dispenser undertakes standard labeling tasks fully or semi-automatically on simple production and packaging lines.
Due to its compact dimensions, the system is suitable for use in cramped production environments. Two different applicators provide labeling on the top or front or back of products. Five different starter kits with stamp plates and matching label material make it easy to get started.
- Printing technology: Thermal transfer or direct thermal
- Print resolution: 203 dpi, optional 300 dpi or 600 dpi
- Maximum printing speed: 450 mm/sec. at 203 dpi
- Label size: min. 20 x 10mm, max. 120x160mm
- Clamping size: 120 x 160 mm
- Applicator types: Linear (CH250), 90°rotation (RO90)
- Label gap: min. 3mm
- Data interfaces: 1 x RS232, 1 x USB (Type B), 2 x USB (Type A), 1 x LAN
- Labeling speed: max. 27 labels/min, depending on label size, content variations and applicator.
- Label application: accuracy up to ± 1.0 mm
- Labeling trigger signal: Reflex sensor, light barrier, inductive or capacitive sensor, micro switch, potential-free contacts (PLC)
- Maximum applicator size: up to 220 mm
Legi-Air 3050 is a compact class label printer. Its compact design, low basis weight and simple suspension enable easy integration into a wide range of production lines. Easy-to-access design simplifies label renewal.
Various installation positions are possible
The label printing dispenser prints and labels in any installation location. Even in production environments where space is at a premium.
Sensory monitoring of the entire donation process
The system constantly monitors whether labels are in the correct position before they are applied. The label-on-stamp sensor offers additional security. Checks if there is actually a label on the stamp plate.
Numerous label formats possible
The Legi-Air 3050 processes small postal labels up to DIN A6 format and larger sizes. Dimensions vary up to 120×160 millimeters.
Intuitive touch screen
A controller with multilingual text display provides the simplest operation. Label- and product-specific parameters can thus be called up quickly. System and maintenance information provides quick and easy diagnosis. Machine status information is presented in plain text.
Five starter kits to get you started quickly
Five different starter kits are available depending on the desired label format. Each contains a stamp plate with four matching label rolls. The Legi-Air 3050 handles a cycle rate of up to 30 labels per minute depending on the label format, text change and applicator .
Two different applicators are available
Legi-Air 3050 can be equipped with two different applicators . Linear applicator allows labeling on products. The rotary applicator can tilt the stamp plate 90 degrees so it can label products from the front or back. The applicators are designed to last a long time and guarantee maximum precision when labeling. The variable dispensing stroke of 220 millimeters enables labeling of products of different heights.
Legi-Air 3050 can be equipped with two different applicators . Linear applicator allows labeling on products. The rotary applicator can tilt the stamp plate 90 degrees so it can label products from the front or back. The applicators are designed to last a long time and guarantee maximum precision when labeling. The variable dispensing stroke of 220 millimeters enables labeling of products of different heights.
Software Alternatives
The label printing dispenser can be controlled and networked with various software programs . Legitronic ® Labeling and Bluhmware in addition to Nice Label There are . Data can be transferred via four different interfaces .
High print quality
Pressure modules from different manufacturers can be integrated into the Legi-Air 3050. This allows you to choose between direct thermal and thermal transfer printing. The system comes standard with a TSC label printer that prints at 203, 300 or 600 dpi resolution.
Five different starter kits
Five different starter kits are available depending on label format. Each contains four rolls of labels with a matching stamp plate.
Two different applicators
The Legi-Air 3050 is optionally available with a linear applicator for top labeling or a rotary applicator for front or rear labeling.

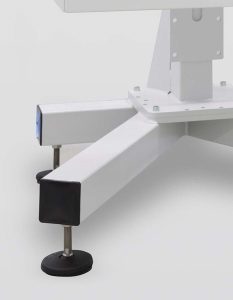

Different tripods
Tripods are available in three different versions.
