the Legi-Air 4050 B, you benefit from the tried and tested technology of Bluhm series production: versatile among label printer distributors, it has been developed with a consistent modular design, it can be especially easily integrated into existing processes, the printer can use modules from all leading manufacturers and is suitable for continuous operation.
The Legi-Air 4050 B is available in four versions with different applicators: choose from blow box, 90-degree rotating arm, electrically operated belt or linear applicator . With the “EB” variant you also reduce your energy costs: Because the “All-electric” label printer dispenser does not require an external compressed air connection and therefore reduces your electricity consumption.
Consistent modular design
All parts of Legi-Air 4050 B, Bluhm It comes from Systems’ tried and tested large-scale production. They are therefore standardized, quickly available as spare parts and inexpensive. Thanks to the consistent modular design, the label maker also has a wide range of extensions and is still very compact.
Pressure modules from leading manufacturers available
The label printing dispenser prints by thermal transfer or direct thermal process with a resolution of 600 dpi . Various, proven pressure modules from global manufacturers can be used. These include, for example, Zebra, Sato , Avery , CAB and Datamax .
Easy to integrate into processes
Legi-Air 4050 B can be easily integrated into processes thanks to its flexible interface to customer software. In this way, variable printing information can be transferred directly to the printing module. Using Legi , Nicelabel or PL Control enables uncomplicated creation of label layouts.
Simple operation thanks to on-screen controller
A rotatable display that can be set remotely from the device guarantees easy control and monitoring of the labeling process.
4 models with different applicators
Legi-Air 4050 B is available in four models. These variants perform different tasks with their different applicators : For example, they provide two-sided labeling that is particularly fast, precise and/or contactless.

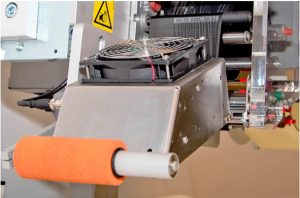

4050 B-Electric Belt: Fully electric version
the Legi-Air 4050 B eliminates costly and resource-intensive compressed air thanks to the use of an electric blower. This offers clear advantages such as higher production output, greater precision, more possible uses, less wear and tear and less noise.
4050 B Blowing Box
The BlowBox of the Legi-Air 4050 B blows the labels without contacting the product surfaces. It provides special protection and is therefore particularly suitable for sensitive products. But this doesn’t mean sacrificing performance: the Legi-Air 4050 B achieves labeling speeds of up to 240 cycles per minute. This corresponds to four tags per second
4050 B-Electric Swing
Legi-Air 4050 B- Electrical of swing The applicator sits on a rotating arm that can rotate at a 90-degree angle on the front and/or back of the product. This provides convenient labeling front, back and front.
4050 B-Electric Linear
With its electrically powered linear applicator , the Legi-Air 4050 B is particularly suitable for the precise labeling of standing products or uneven product surfaces.

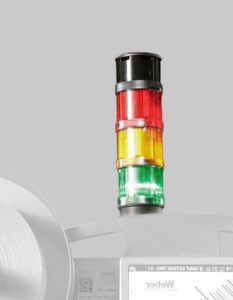

3-color alarm light
In addition to the standard error message on the text display, a 3-color alarm light is available.
IPC in protective housing
The IPC is available in a rugged protective housing for use in production environments with adverse environmental impacts.
Sensors
Various sensors for variable distribution pulse scanning or product sensors.
Software
Legitronic for control and networking of systems and Bluhmware software are also available.

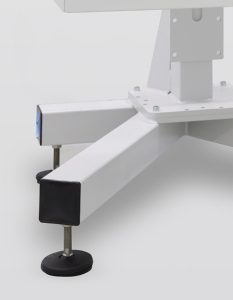

Different Tripods
Legi-Air 4050 B is available in various versions with fixed, spindle adjustable or mobile stand .
Printing technique: Thermal transfer or thermal direct
Print resolution: 203dpi, 300dpi, 600dpi
Maximum print speed: up to 400 mm/ sec
Label size 12.5 x 7 mm – 120 x 160 mm (EL); 12.5 x 7mm – 120 x 90mm (ES); From 30 x 30 mm to 150 x 210 mm (EB); From 50 x 40 mm to 100 x 100 mm (BB)
max . – (Can be used with 300 mm EL)
Donation Applicators: Stepper motor driven linear dispensing stroke 250 mm (EL); 90° rotatable applicator (ES); belt applicator (EB); 4 x 4″ blow box (BB)
Label gap: at least 3 mm

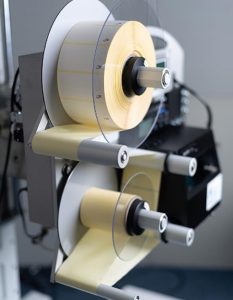

Label roll and roll core Ø 300 mm, up to 450 meters, externally wound, opt . Inside; Ø 76 mm (3″)
Data interface: all common interfaces
control interface Potential-free outputs (relays), optocoupler inputs, M12 connection
Delivery rate max: up to 70 labels/ min (EL); up to 60 labels/ min (ES); up to 240 labels per minute (EB & BB)
Position accuracy Standard: Up to ± 1 mm with stopped product (EL & ES); Standard: up to ± 1 mm at constant product speed (EB); Standard: up to ± 1.5 mm on dead product (BB)
Print Delivery Activation: Reflex sensor , light barrier, inductive or capacitive sensor , micro switch, potential-free contacts (PLC)
Alarm device standard Standard: error message in text display, potential-free contacts (SPS)
Options: 3-colour alarm light, IPC in protective housing, Legitronic ® software, Bluhmware , label presence control, product sensors , tripod (fixed, spindle, mobile); variable distribution pulse scanning (EL & ES)
Power supply: 91 – 263 VAC / 50 ~ 60 Hz, 5 amps
Weight: from 35 kg (depending on version)
Compressed air connection: 6 bar for EL, ES and BB, clean, dry and oil-free (DIN ISO 8573-1)
Compressed air consumption: 0.3 to 3 L per donation cycle in EL and ES ; 0.3 to 1 l in BB
Ambient temperature: 2°C to 35°C
Relative humidity: 15% to 95% non -condensing
Dust protection housing: Aluminum profile with stainless steel sheet
Printing unit: Datamax , Sato , Zebra, Avery , CAB
Allow: CE
